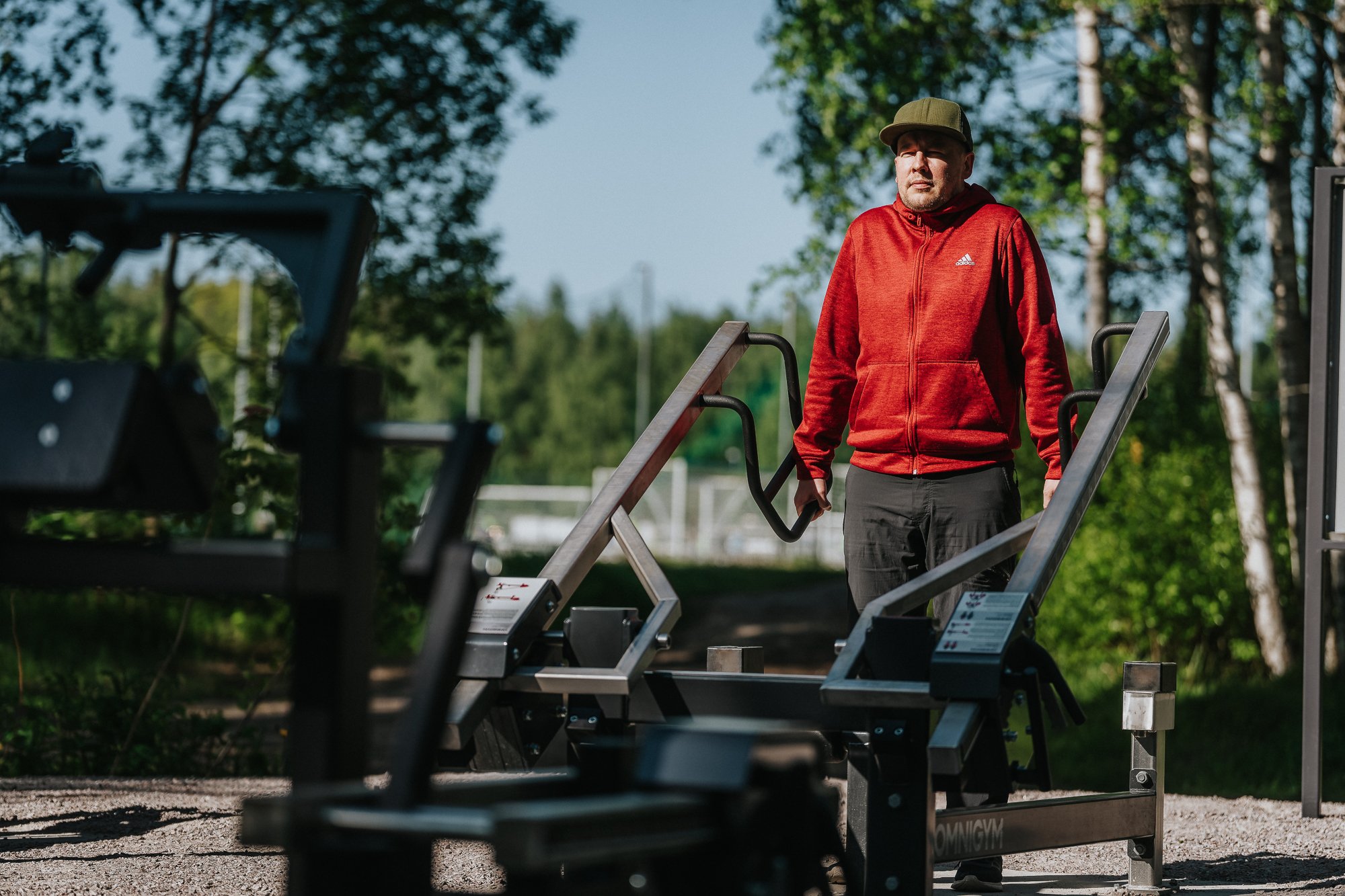

Multi lift for Outdoor Gym

Product card

Download

2D DWG picture

Download

3D DWG picture

Download

Product info

Length 2060 mm
Width 1320 mm
Height 655 mm
Equipment weight 180 kg (2 x weight unit)

Metal parts Steel
Movement arm Stainless steel
Tube strengths 3-6 mm
Coating solution Zink and powder coating
electropolishing

Adjustable loading:
o 5-120 kg (2 x weight unit)
o 2,5 kg increments

Country of manufacture Finland
Standard EN16630

Base options

A. Concrete Surface mounting to concrete
B. Platform Installed on movable platform

Foundation

For example: artificial turf or moldable safety platform
Concrete min 120 mm below equipment
Ground frost insulation, thickness based on the ground

Is the resistance adjustable? Yes, the scale is from 5kg to 120kg (with 2 weight units).

Can beginners use this? Yes, the equipment is suitable for all fitness levels.

Does it require electricity? No, the equipment works with only your own muscle power.

How much maintenance is required? EN16630 standard for "Permanently installed outdoor fitness equipment" requires routine visual and operational inspections, which are carried out monthly and/or yearly. Outside of tightening bolts or cleaning up dirt, the equipment is maintenance-free in normal use.

Can it be installed on existing concrete? Yes, check the details from equipment's installing instructions.

What safety standards does it meet? The equipment has an ISO 9001 Quality Management System and ISO 14001 Environmental Management System standard as well as EN 16630. The equipment is also TÜV certified.
