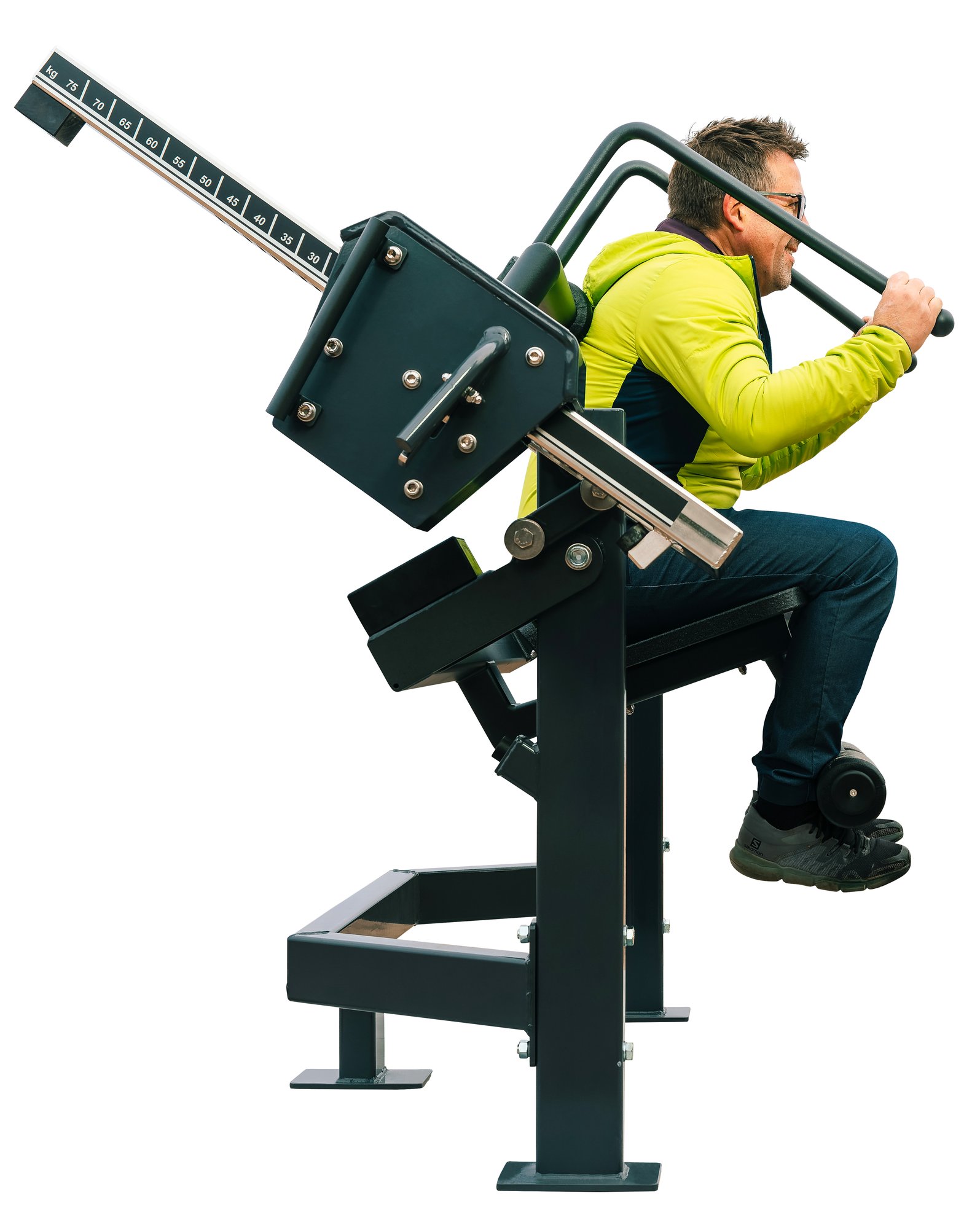

Omnigym_OG92_abdominalmachine

Strong core with Abdominal Machine

Muscle groups: abdominals

Strong core for good posture, balance, and stability

The Abdominal machine with a weight unit is great for strengthening your abs. With the adjustable weight unit you get an even more efficient training for your abdominals.
2026_OMNIGYM_kuvaaja_vilmanorokorpi-01634

Product card

Download
078 Omnigym 6-2023 HIGH RES

2D DWG picture

Download
2026_OMNIGYM_kuvaaja_vilmanorokorpi-01572

3D DWG picture

Download

Product info

Length 1090 mm
Width 1650 mm
Height 1520 mm
Equipment weight 167 kg (1 x weight unit)

Metal parts Steel
Movement arm Stainless steel
Tube strengths 3-6 mm
Coating solution Zink and powder coating
electropolishing

Adjustable loading:
o 5-75 kg (1 x weight unit)
o 5 kg increments

Country of manufacture Finland
Standard EN16630



Base options

A. Concrete Surface mounting to concrete
B. Platform Installed on movable platform



Foundation

For example: artificial turf or moldable safety platform
Concrete min 120 mm below equipment
Ground frost insulation, thickness based on the ground

OG92

Combine with



Is the resistance adjustable? Yes, the scale is from 5kg to 75kg (with 1 weight unit).
Can beginners use this? Yes, the equipment is suitable for all fitness levels.
Does it require electricity? No, the equipment works with only your own muscle power.
How much maintenance is required? EN16630 standard for "Permanently installed outdoor fitness equipment" requires routine visual and operational inspections, which are carried out monthly and/or yearly. Outside of tightening bolts or cleaning up dirt, the equipment is maintenance-free in normal use.
Can it be installed on existing concrete? Yes, check the details from equipment's installing instructions.
What safety standards does it meet? The equipment has an ISO 9001 Quality Management System and ISO 14001 Environmental Management System standard as well as EN 16630. The equipment is also TÜV certified.
OG92_RAL5012
OG92_RAL6018
OG92_RAL7024
OG92_RAL3020
OG92_RAL1017
5 standard colors and a custom option
Värivaihtoehdot_2023



080 Omnigym 6-2023 HIGH RES
