Reach the sky with Chinup bar

Muscle groups: hamstrings, quads, glutes and calves

Chinup bar

Chinups build muscle and strength in the upper back and biceps, as well as stabilizing strength in the core and shoulders. This makes it an excellent exercise for creating power and strength in your body. Additionally, you'll find that this exercise will also require you to use your core and arms.​ The Chinup bar can be ordered with one, two or three bars.

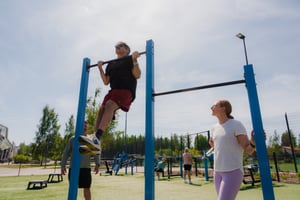

A man hanging in a pullup bar and a woman playing on a lower bar, in an Omnigym outdoor gym.

Product card

Download
A man doing chins on a Chinup bar from Omnigym in an outdoor gym

2D DWG picture

Download
A man doing assisted pullups on a chinup bar outdoors, with a woman helping by holding his legs.

3D DWG picture

Download

Product info

Length 230 mm
Width 1160 mm / 2240 mm / 3320 mm
Height 2468 mm (bar 2320 mm) / 2468 mm (bar 1720 / 2320 mm) / 2468 mm (bar 1220 / 1720 / 2320 mm)
Equipment weight 55 kg / 70 kg/ 87 kg

Metal parts Steel
Movement arm Stainless steel
Tube strengths 3-6 mm
Coating solution Zink and powder coating
electropolishing

Country of manufacture Finland
Standard EN16630



Base options

Concrete Surface mounting to concrete

Foundation

Max. free fall height 1320 mm. Safety area must be equipped with impact damping surface such as lawn, artificial grass + padding (22mm) or safety tiles (40mm).

Concrete min 120 mm below equipment

Ground frost insulation, thickness based on the ground

OGCU1S
OGCU3
OGCU2-1

Combine with



Is the resistance adjustable? No, this equipment works with your own body weight.
Can beginners use this? Yes, the equipment is suitable for all fitness levels.
Does it require electricity? No, the equipment works with only your own muscle power.
How much maintenance is required? EN16630 standard for "Permanently installed outdoor fitness equipment" requires routine visual and operational inspections, which are carried out monthly and/or yearly. Outside of tightening bolts or cleaning up dirt, the equipment is maintenance-free in normal use.
Can it be installed on existing concrete? Yes, please check the details from equipment's installing instructions.
What safety standards does it meet? The equipment has an ISO 9001 Quality Management System and ISO 14001 Environmental Management System standard as well as EN 16630. The equipment is also TÜV certified.
Chinup bars for outdorr gyms with three different heights
Chinup bars for outdorr gyms with three different heights
Chinup bars for outdorr gyms with three different heights
Chinup bars for outdorr gyms with three different heights
Chinup bars for outdorr gyms with three different heights
5 standard colors and a custom option
